Aston Martin Vantage GTE
Technical Specification
Body
•
Lightweight carbon fibre bodywork.
• Designed front splitter & floor with Aerodynamic.
• Designed front splitter & floor with Aerodynamic.
• Aluminium roof.
• Including splitter and diffuser in CFD optimised aerodynamics.
• Adjustable carbon fibre rear wing.
• Driver safety access hatch.
• Including splitter and diffuser in CFD optimised aerodynamics.
• Adjustable carbon fibre rear wing.
• Driver safety access hatch.
Aston Martin Vantage GTE With Racing Edition |
Brakes
• Six pot front Brembo calipers
• Four pot rear Brembo calipers
• Ventilated discs
• Pagid RS pads
• customized light-weight pedal box
• Goodridge hydraulic brakes lines
• Four pot rear Brembo calipers
• Ventilated discs
• Pagid RS pads
• customized light-weight pedal box
• Goodridge hydraulic brakes lines
Chassis
• Light-weight aluminium chassis
• Steel roll cage to FIA safety standards
• Steel roll cage to FIA safety standards
• High speed gas jack system Steering
Engine
• Light-weight V8
• Dry sump oil system
• Engine repositioned to optimise weight distribution
• Power > 480 bhp
• Force > 500Nm
• Dry sump oil system
• Engine repositioned to optimise weight distribution
• Power > 480 bhp
• Force > 500Nm
Aston Martin Vantage GTE With Racing Edition |
Fuel System
• 95l fuel cell designed to FIA safety standards• Twin fast release couplings
Interior
• Racetech 8862-2009 carbon fibre seat.

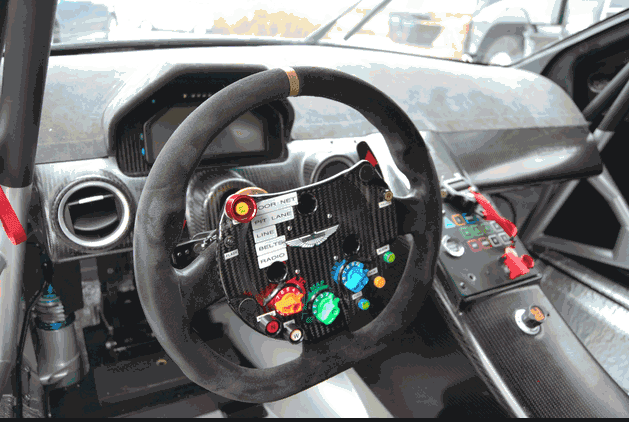

• Bespoke carbon fibre handwheel.
• Schroth 6 point safety harness.
• Lifeline device system.
• Super B light-weight lithium ion batter.
• Bespoke carbon fibre handwheel.
• Schroth 6 point safety harness.
• Lifeline device system.
• Super B light-weight lithium ion batter.
Steering
• Hydraulic power assisted steering
• Fast release steering wheel
• Fast release steering wheel
Aston Martin Vantage GTE With Racing Edition |
Suspension
• Double furcula suspension
• Four method adjustable Bilstein dampers
• Four method adjustable Bilstein dampers
Transmission
• Xtrac half dozen speed consecutive case
• Semi-automatic paddle shift gear amendment
• ZF Sachs sport clutch
• Restricted slip combination VC and ramp/ plate differential
• Carbon fibre propshaft
• Semi-automatic paddle shift gear amendment
• ZF Sachs sport clutch
• Restricted slip combination VC and ramp/ plate differential
• Carbon fibre propshaft
Weight & Dimensions
• Dry weight 1245 kg
• Height 1500 mm
• Length 4450 mm
• Width 1934/1956 mm
• Wheelbase 2600 mm
• Width 1934/1956 mm
• Wheelbase 2600 mm
Wheels & Tyres
• Dunlop 305-680R18
• Dunlop 312-705R18
• Dunlop 312-705R18
Weight and Aerodynamics
There are minimum weight limits in sports car racing and for the GTE category it is 1245 kg, around 400 kilogram but the road car. vital weight is saved in the bodywork wherever carbon fibre panels replace the already light-weight aluminium in the road car. the inside of the car is additionally stripped as items like electrically-controlled leather seats, in-car recreation and sound proofing aren't needed.
The overall form and silhouette of the car has got to remain the same under the rules, but aerodynamics are crucial in enhancing performance.
The overall form and silhouette of the car has got to remain the same under the rules, but aerodynamics are crucial in enhancing performance.
